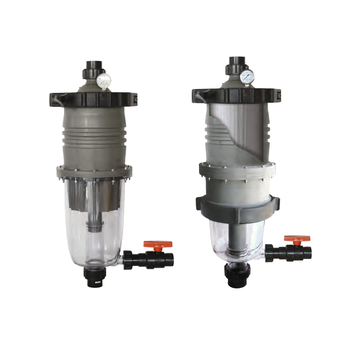

MultiCyclone 12 & 16 Plus

MultiCyclone 12 & 16 Plus combines centrifugal and cartridge filtration into one streamline housing, creating an ultra compact filtration system that can be vertically installed on a pool pump.

Sign Up for Waterco Newsletter

  • MultiCyclone Plus combines centrifugal and cartridge filtration into one streamline housing, creating an ultra compact filtration system that can be vertically installed on a pool pump.

    • Dual stage filtration
    • Ultra compact
    • Ease of maintenance
  • Dual stage filtration

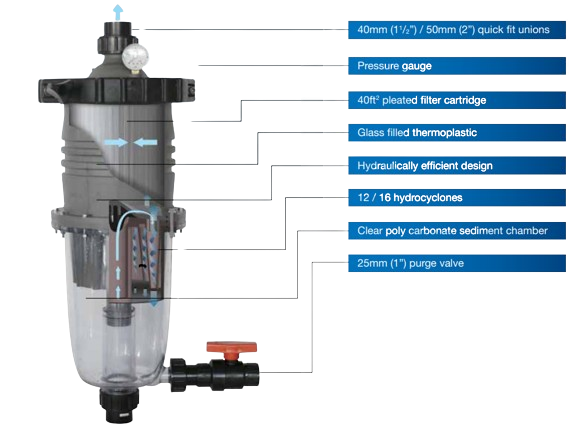

    Incoming water tangentially enters its multiple hydrocyclones, generating a strong centrifugal effect. Approximately 80% of the incoming dirt load is spiralled down to its clear sediment chamber. The outgoing water is finally polished via its inbuilt cartridge filter,producing crystal clear water producing crystal clear water.

  • Extended filter capacity

    As MultiCyclone Plus’s centrifugal section filter pre-filters up to 80% of the incoming dirt load, the capacity of its 40 ft2 filter cartridge is magnified by up to 5 times.

  • Ease of maintenance

    MultiCyclone Plus’s sediment chamber is easily cleaned by opening its purge valve. Only 15 litres of water is discharged.

  •



  •

    Ultra Compact

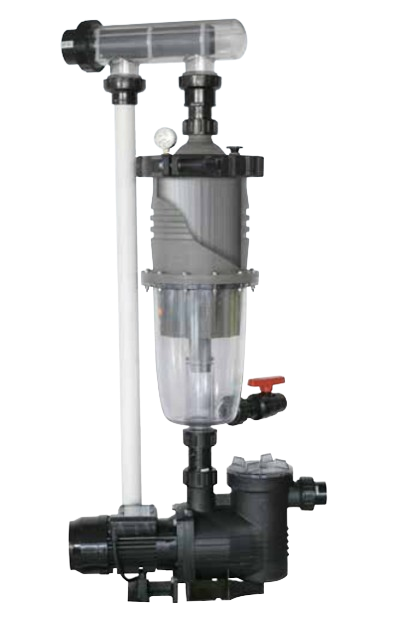

    MultiCyclone Plus’s streamlined design means the entire filtration system can be installed vertically, reducing the footprint of the equipment pad. Additionally, minimal pipework reduces the filtration system’s overall head loss. Alternatively the MultiCyclone Plus can be installed next to the pump by using an optional support base



  • Warranty: MultiCyclone Plus is covered by a 2 year warranty and 1 year warranty on labour. Commercial installations are covered by a 1 year warranty

MultiCyclone 12 & 16 Plus combines centrifugal and cartridge filtration into one streamline housing, creating an ultra compact filtration system that can be vertically installed on a pool pump.



MultiCyclone Plus is the ideal choice for above ground and small to mid sized swimming pools.

  • Dual stage filtration
  • Ultra compact
  • Ease of maintenance
  • 40 sqft filter cartridge
  • Save time, water and energy
  • 2 year warranty
